Finding the right logic analyzer can make SPI and I2C debugging far faster. The best option depends on channel count, sample rate, software support, and how complex your signals are.
We compare 10 logic analyzers for SPI and I2C, including compact tools for Arduino projects, portable analyzers, and higher-performance models for FPGA and embedded development.
Best 10 Logic Analyzers for Spi and I2c Picks for 2026
Best High-Capacity Pick
LA2016 16-Channel Logic Analyzer
- 16 channels with 200MHz sampling and 1Gbit memory
- Decodes I2C, SPI, UART, CAN, and 20+ protocols
- Cross-platform software with PWM generation and export
Best For: Longer, complex captures and multi-bus debugging
Best for High-Speed Debugging
LA5032 32-Channel Logic Analyzer
- 32 channels and 500MHz sampling for detailed timing analysis
- Deep memory supports extended digital captures
- Decodes I2C, SPI, JTAG, UART, CAN, and more
Best For: Advanced FPGA, MCU, and high-channel-count debugging
Best Portable Standalone Option
- Built-in 500mAh battery and color LCD
- Supports SPI, I2C, UART, and custom protocols
- Stores data and waveform images in 8MB memory
Best For: On-site troubleshooting without a computer
Best Value for Everyday Debugging
- 16 channels with 100MHz sampling
- Decodes SPI, I2C, UART, CAN, and 30+ protocols
- Works with Windows, macOS, and Linux
Best For: General embedded debugging and protocol monitoring
High-Speed Precision Pick
16-Channel 1GHz Logic Analyzer
- Up to 1GHz sampling on 8 channels
- 16G streaming storage depth
- Windows, macOS, and Linux support
Best For: High-speed embedded, ARM, and FPGA debugging
Premium Workflow Pick
- 16 digital/analog multipurpose inputs
- SPI, I2C, and 23+ protocol decoders
- Up to 500 MS/s digital sampling
Best For: Cross-platform digital and analog troubleshooting
Budget Debugging Pick
8-Channel 24MHz Logic Analyzer
- Eight channels at up to 24 MHz
- Supports UART, IIC, and SPI debugging
- Includes EMI ferrite-ring USB cable
Best For: Routine embedded and hobbyist signal testing
Best Overall
- 24MHz capture across eight channels
- Breadboard adapter and extensive clips included
- USB-A and USB-C cables with multi-OS support
Best For: Flexible embedded-system prototyping and protocol debugging
Best Software Compatibility
- Saleae-compatible and PulseView-supported
- Eight channels with up to 24MHz sampling
- Automatic UART, SPI, and I2C decoding
Best For: Users already working with Saleae or PulseView software
Best Clip Bundle
- 24Msps sampling across eight channels
- Includes 12 colorful SMD test hook clips
- Supports UART, IIC, and SPI debugging
Best For: Multi-line probing and MCU bench debugging
Best High-Capacity Pick – LA2016 16-Channel Logic Analyzer
For demanding embedded debugging, this LA2016 is one of the more capable logic analyzers for SPI and I2C. It combines 16 channels, a 200MHz sampling rate, 1Gbit memory, and automatic decoding for both protocols, along with broad computer compatibility.
Best For: Engineers and advanced hobbyists analyzing multiple buses or longer signal captures in the lab or field.
Pros:
- Captures 16 digital signals at up to 200MHz with 1Gbit of memory.
- Decodes I2C, SPI, UART, CAN, and more than 20 protocols.
- Includes waveform compression, data export, and a built-in PWM generator.
- Works with Windows, macOS, and Linux and includes probes and hook clips.
Cons:
- Requires a computer for its PC-based software workflow.
- The extensive feature set may be more than needed for simple two-wire troubleshooting.
The LA2016 stands out when channel count, capture depth, and cross-platform software matter. Its accessory bundle also makes it a practical complete setup for bench or portable work.

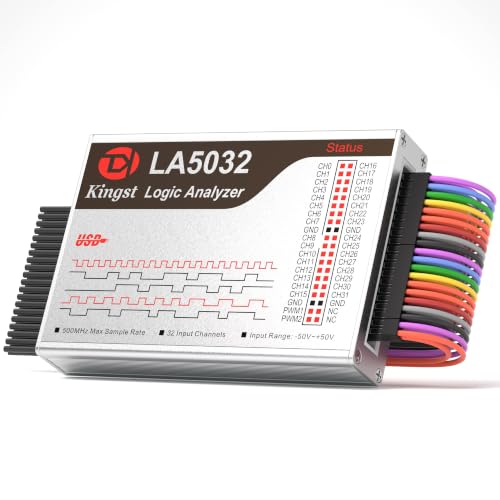

Best for High-Speed Debugging – LA5032 32-Channel Logic Analyzer
The LA5032 is designed for demanding digital analysis, making it a strong option among logic analyzers for SPI and I2C when you need many channels and fast timing resolution. Its 32 synchronous channels, 500MHz sampling rate, and deep memory support complex MCU, ARM, and FPGA work.
Best For: FPGA, MCU, and other advanced debugging projects requiring high channel density and long captures.
Pros:
- Provides 32-channel capture at up to 500MHz with 6.25ns glitch detection.
- Offers 4Gbit hardware memory and claimed 10G sample depth per channel with compression.
- Automatically decodes I2C, SPI, JTAG, UART, CAN, and other protocols.
- Includes a two-channel PWM generator adjustable from 0.1MHz to 20MHz.
Cons:
- Its advanced capabilities may be excessive for basic SPI or I2C checks.
- The supplied notes do not specify included probes or accessories.
With the highest channel count and sampling rate in this group, the LA5032 is aimed at complex, timing-sensitive captures. It is the most suitable choice here when maximum digital-analysis headroom is the priority.
Best Portable Standalone Option – LA104 Pocket Logic Analyzer
If portability is central to your search for logic analyzers for SPI and I2C, the LA104 offers a self-contained alternative to USB-only instruments. It has a built-in battery, onboard display, 8MB of storage, and support for SPI, I2C, UART, and user-defined protocol modes.
Best For: Field troubleshooting and quick checks where a built-in screen and battery-powered operation are useful.
Pros:
- Portable design includes a built-in 500mAh battery.
- Supports SPI, I2C, UART, and user-defined protocol modes.
- Stores captured data and waveform images in 8MB of internal memory.
- Includes a full-color LCD for viewing waveforms without a computer.
Cons:
- Its 100MSaS acquisition rate is lower than the faster USB models in this roundup.
- Only 8MB of onboard storage is specified.
- The supplied dimensions and weight information is inconsistent, so verify current listings before purchase.
The LA104 is best understood as a grab-and-go troubleshooting tool rather than a maximum-capacity desktop analyzer. Its screen and battery make it convenient for on-site SPI and I2C checks.
Best Value for Everyday Debugging – LA1010 16-Channel Analyzer
The LA1010 is a practical entry point for engineers and makers comparing logic analyzers for SPI and I2C. It provides 16 input channels, 100MHz sampling, real-time waveform viewing, and decoding for more than 30 protocols through its KingstVIS PC software.
Best For: Routine embedded-system debugging, signal monitoring, and protocol analysis on Windows, macOS, or Linux.
Pros:
- Captures 16 digital signals simultaneously at 100MHz.
- Decodes I2C, SPI, UART, CAN, and more than 30 communication protocols.
- Supports Windows, macOS, and Linux with automatic driver installation noted.
- Low listed power consumption of 0.5 watts and a portable design.
Cons:
- Its 100MHz rate is lower than the LA2016 and LA5032.
- It lacks the deep-memory specifications highlighted by those higher-end models.
- Operation depends on the included PC software rather than a standalone display.
The LA1010 balances channel count, protocol coverage, and portability for everyday digital work. It is a sensible choice when you need broad SPI and I2C support without prioritizing the highest capture speed.
High-Speed Precision Pick – 16-Channel 1GHz Logic Analyzer
For demanding logic analyzers for SPI and I2C projects, this 16-channel device combines high sampling rates, adjustable thresholds, masking lines, and deep streaming storage. It is a strong fit when you need to inspect fast or lengthy digital captures across embedded, ARM, and FPGA workflows.
Best For: Engineers and developers debugging complex, high-speed digital systems.
Pros:
- Samples at up to 1 GHz on 8 channels and 500 MHz on all 16 channels.
- Offers adjustable thresholds and masking lines to help improve waveform clarity.
- Supports up to 16G of streaming-mode storage and nearly 100 protocol decoders via GitHub.
- Compatible with Windows 10, macOS, and Linux.
Cons:
- The advanced feature set may be more than needed for simple, low-speed bus checks.
- The listed storage-depth figure applies to streaming mode.
Choose this model when capture speed, channel count, and long recording capability matter more than a minimal setup. Its broad software compatibility also makes it adaptable for varied development environments.
Premium Workflow Pick – Saleae Logic Pro 16
The Saleae Logic Pro 16 is a polished option among logic analyzers for SPI and I2C, with 16 multipurpose digital/analog inputs and built-in decoding for both interfaces. Its cross-platform design and PC-backed memory make it well suited to extended troubleshooting sessions.
Best For: Developers who want versatile digital and analog capture on Windows, Mac, or Linux.
Pros:
- Provides 16 digital/analog inputs for flexible signal analysis.
- Decodes SPI, I2C, and more than 23 additional protocols.
- Reaches up to 500 MS/s digital and 50 MS/s analog sampling rates.
- Supports more than 10 billion digital samples using PC memory.
Cons:
- Extended capture capacity uses the connected computer’s memory.
- Its 1.1-pound aluminum design is less lightweight than compact basic analyzers.
This is the better choice for buyers who value an integrated digital-and-analog workflow and broad protocol support. It offers a practical balance of portability, capture depth, and cross-platform usability.
Budget Debugging Pick – 8-Channel 24MHz Logic Analyzer
This compact HiLetgo unit is a straightforward entry point for logic analyzers for SPI and I2C, with eight channels and sampling up to 24 MHz. It is designed for common digital signal analysis, embedded-systems debugging, and hardware testing rather than very high-speed capture.
Best For: Hobbyists and developers handling routine UART, IIC, SPI, and other low-to-moderate-speed signals.
Pros:
- Offers eight channels with sampling rates up to 24 MHz.
- Supports adjustable rates from 25 kHz through 24 MHz.
- Includes an EMI ferrite-ring USB cable.
- Accepts input voltages from -0.5V to 5.25V and lists 1 MΩ input impedance.
Cons:
- Its 24 MHz maximum sampling rate is suited to general applications, not demanding high-speed analysis.
- Provides fewer channels than the 16-channel alternatives in this roundup.
For basic bus debugging and hardware experiments, this analyzer keeps the setup simple and inexpensive. Select a faster model if your signals require greater timing resolution or longer, more complex captures.
Best Overall – 8-Channel Logic Analyzer Kit
If you want versatile logic analyzers for spi and i2c work, this 8-channel kit combines 24MHz capture with breadboard-friendly adapters and a broad accessory set. It is suited to debugging Arduino, ESP32, Raspberry Pi, and other embedded projects across Windows, Mac, Linux, and Ubuntu.
Best For: Hobbyists, students, and embedded developers who need flexible connections for SPI, I2C, UART, and general microcontroller debugging.
Pros:
- Eight channels and capture speeds up to 24MHz support multi-signal protocol analysis.
- Includes a breakout board, breadboard adapter, test clips, alligator clips, and jumper wires.
- USB-A and USB-C cables plus cross-platform support simplify setup with different computers.
Cons:
- The larger accessory kit may be more than needed for simple, occasional captures.
- The supplied notes do not specify an included proprietary analysis application.
This is the most complete option of the three for hands-on prototyping. Its adapters and included leads reduce connection work, while eight channels provide useful visibility when several SPI or I2C lines must be monitored together.
Best Software Compatibility – 24MHz USB Debug Tool
This compact 8-channel analyzer is a practical choice among logic analyzers for spi and i2c, especially if you already use Saleae Logic-compatible software or PulseView. It offers adjustable sampling rates up to 24MHz and automatic decoding for common serial protocols.
Best For: Arduino, ARM, FPGA, and robotics users who want a straightforward USB analyzer with Saleae and Sigrok/PulseView compatibility.
Pros:
- Supports eight digital channels with sampling rates up to 24MHz per channel.
- Designed for Saleae Logic Analyzer software and also supported by PulseView.
- Can automatically analyze UART, IIC, SPI, and other standard protocols.
- Accepts input from 0V to 5.5V with a stated 1.5V logic threshold.
Cons:
- Package contents are relatively basic: analyzer, USB cable, and 10 Dupont lines.
- The listed operating-system support specifies Windows and Linux, not Mac.
Choose this model when software compatibility matters more than a broad physical accessory bundle. Its adjustable rates and protocol-decoding support make it a focused tool for routine SPI, I2C, and UART troubleshooting.
Best Clip Bundle – 8-Channel Analyzer With Hooks
For buyers comparing logic analyzers for spi and i2c, this 8-channel USB device stands out for including 12 colorful test hook clips. It supports up to 24Msps per channel and is intended for UART, IIC, SPI, and other MCU communication debugging on Windows and Linux systems.
Best For: Bench work where multiple digital signals need to be connected quickly without sourcing a separate set of test hooks.
Pros:
- Monitors eight digital signals simultaneously with sampling up to 24Msps per channel.
- Includes 12 SMD IC test hook clips in six colors, plus USB and female cables.
- Supports UART, IIC, and SPI debugging across several Windows versions and Linux.
- Specifies 0–5V input range and stated low/high input thresholds.
Cons:
- The supplied notes do not mention Mac support.
- Its listed package dimensions and weight describe a compact device, but storage accessories are not specified.
This bundle is particularly convenient when secure probing is a priority. The color-coded hook set can make multi-line SPI or I2C connections easier to organize, while the eight channels preserve useful visibility during MCU debugging.
How We Picked the Best Logic Analyzers for Spi and I2c
We focused on the features that matter during real-world digital troubleshooting: protocol support, input-channel count, sampling performance, memory depth, software compatibility, portability, and overall value. The selection includes entry-level 8-channel USB analyzers, versatile 16-channel models, high-channel-count options, and premium hardware for users who need dependable capture performance.
Because product specifications and bundled software can vary, verify the current listing for supported operating systems, probe accessories, voltage limits, and included decoding tools before buying.
Quick Comparison
| Type | Best For | What to Prioritize |
|---|---|---|
| 8-channel USB analyzer | Arduino, hobby, and basic bus debugging | Affordable price, usable software, included clips |
| 16-channel analyzer | Embedded systems and multiple buses | More inputs, deeper memory, flexible protocol decoding |
| 32-channel or high-speed model | FPGA, JTAG, and dense digital systems | Sample rate, bandwidth, memory, and trigger options |
| Portable analyzer | Field work and quick checks | Small size, display or standalone operation, battery convenience |
| Premium analyzer | Frequent professional debugging | Capture reliability, software quality, and long-term usability |
Key Buying Factors for Logic Analyzers for Spi and I2c
Channels and Signal Coverage
I2C usually needs at least two channels for SDA and SCL, while SPI commonly requires clock, chip select, MOSI, and MISO. Choose four or more channels for basic SPI and additional inputs if you need to monitor interrupts, multiple chip selects, UART, or control signals at the same time.
Sample Rate and Memory Depth
A higher sample rate helps capture faster edges and gives you more timing detail. For ordinary low-speed I2C and SPI work, an entry-level analyzer may be sufficient. Faster SPI clocks, FPGA interfaces, and short glitches benefit from higher sampling rates and deeper capture memory.
Software and Protocol Decoding
Protocol decoding is often more important than headline hardware specifications. Confirm that the software supports SPI and I2C decoding, useful triggers, export options, and your computer’s operating system. Windows compatibility is common, but Mac and Linux support varies.
Voltage, Probes, and Electrical Safety
Check the analyzer’s supported input voltage range and logic thresholds before connecting it to a target board. Proper ground connections are essential. Included test hooks and breakout accessories can add value, but they do not replace checking signal-level compatibility.
Who Should Buy Which Logic Analyzers for Spi and I2c?
Choose an affordable 8-channel USB model for Arduino, Raspberry Pi, and occasional UART, SPI, or I2C troubleshooting. A 16-channel analyzer is the better all-purpose choice when you monitor several buses or need extra control signals. FPGA, JTAG, and high-speed embedded work justify a 32-channel or higher-performance model. Pick a portable analyzer when compact size and field testing matter most. For frequent professional use, prioritize polished software, stable captures, broad operating-system support, and dependable accessories over the lowest price.
